I think I saw a while back in one of the webinars there was a Building Block where you can insert an indicator of an indicator, I can't remember where. Say I want to plot an SMA of the RSI or the Bollinger Bands of the CCI on the same panel rather than of the price. Which one was it? Thanks
0
255
Solved
8 Replies

Reply

Bookmark

Sort
- ago
#1
See Transformer indicators. It's IndOnInd but there's more to boost your creativity.
0
Best Answer
- ago
#2
Thank you. How do I select which panel it goes into? I want to place it on the same panel as my custom indicator but it automatically IndOnInd goes into a new panel. The SmoothInd seems to work on the custom indicator panel, but does not have all the indicators on the scroll dn list.
0
- ago
#3
If you drop IndOnInd onto an indicator plotted in its own pane - say RSI - then it appears exactly in the RSI pane.
0
- ago
#4
You just add the IndOnInd indicator:
- select as "Source Indicator" the indicator that you want to apply to your custom indicator; and then
- select in "applied to" your own custom indicator.

That's about it...
0
- ago
#5

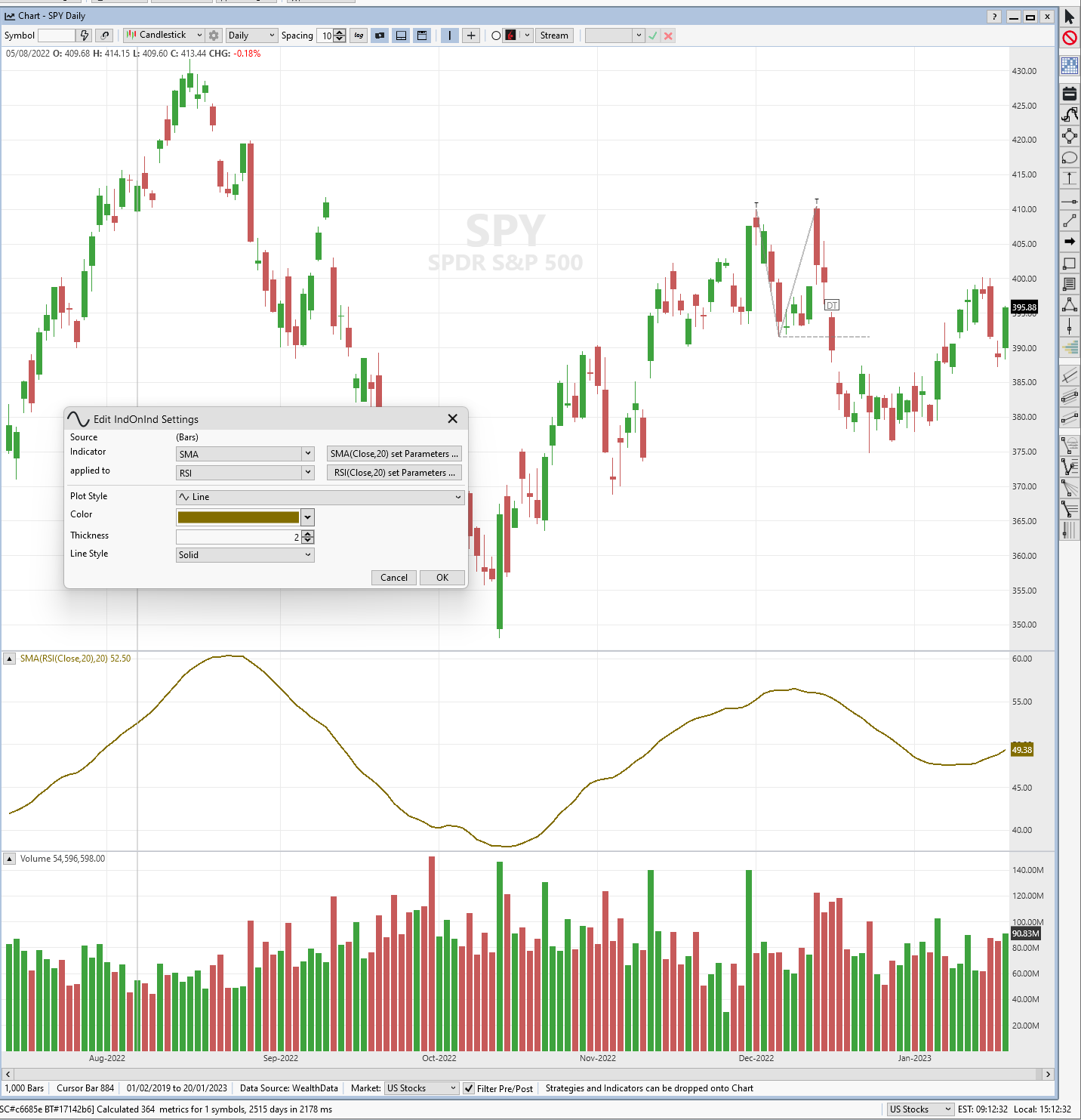

Example:
0
- ago
#6

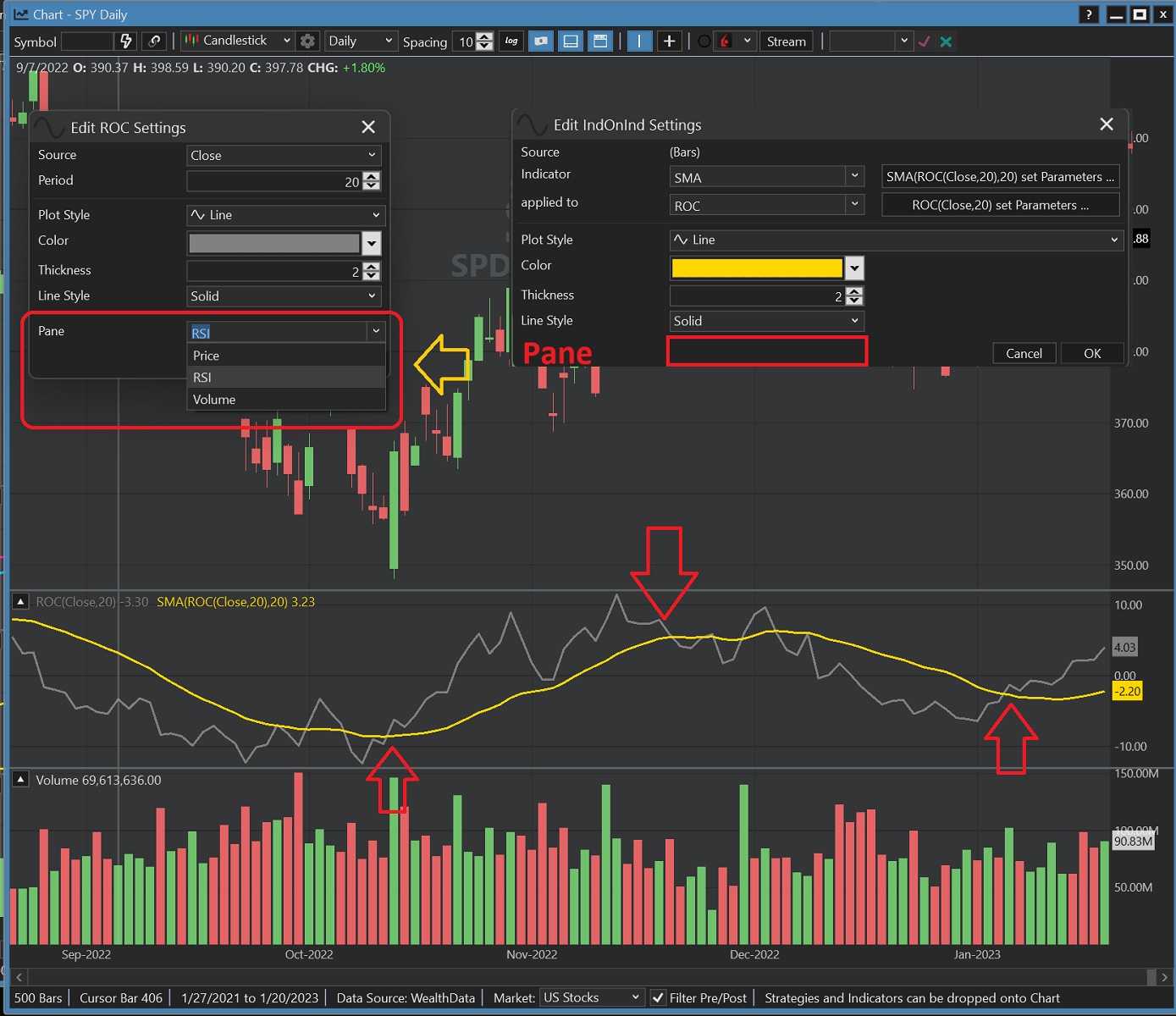

Thanks, but I would like to place the indicator and the IndOnInd on the same pane. Apparently the IndOnInd block does not have the pane scroll down feature(maybe in a future build could be added?) See image below. Right now I have to drag the IndOnInd first then the indicator so I can then choose a pane. This feature also will allow me to place additional IndOnInd blocks on the indicator like the Bolinger bands upper and lower. Thank you.

0
- ago
#7
If something is missing then this is usually for a reason. However, you can push drag-and-dropped indicators to C# strategy code via chart's right-click menu and modify the Pane string as you please.
0
- ago
#8
Thank you. I figure out a way.
Apparently you are right IndOnInd recognises RSI but does not recognize Custom Indicators so I was able to achieve it following this process.

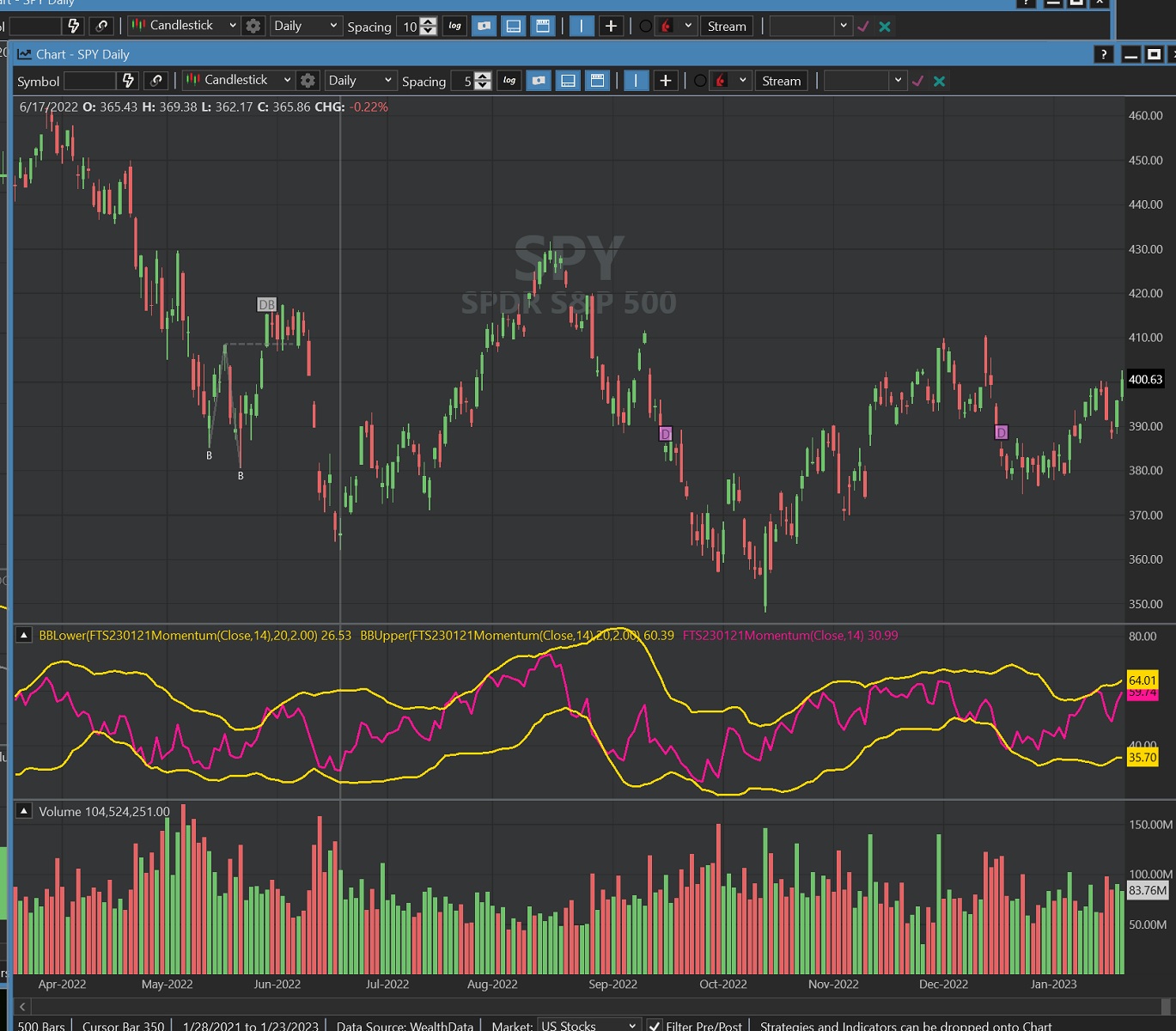

In this instance I placed the Bollinger Bands into my custom indicator(See image below)
To Place multiple Indicators on Indicator (IndOnInd Block)
1- Drag and drop RSI indicator.
2-Drag and drop IndOnInd (Transformers) on same pane change to applied to RSI
3-Drag and drop 2nd IndOnInd (Transformers) change on same pane to applied to RSI again
4-Add your Custom indicator to the same pane.
5-Remove RSI indicator if desired and keep your custom Indicator.
6-Enjoy.
